Speccy

Link to an issue, a page or the code

This guide shows you how to link a spec doc to an issue, a page or the code, and how to read the result.

An external link names an artifact outside Speccy: an issue, a page, a repo path or a commit. It sits in the same links: list of the frontmatter as a link to another bundle. The target carries a scheme that says which system holds it.

Write the target

Section titled “Write the target”
Target Example What it names
github:owner/repo github:acme/payments A whole repo.
github:owner/repo#path github:acme/payments#internal/pay A folder or a file in a repo.
github:owner/repo@commit#path github:acme/payments@4f2a9c1#internal/pay A path at one commit.
github:owner/repo@commit github:acme/payments@4f2a9c1 One commit.
<scheme>:<key> jira:PAY-412 A key that a pattern in .speccy.yaml turns into a URL.
A full URL https://company.atlassian.net/wiki/spaces/ENG/pages/4210 Any http or https page.

A commit is 7 to 40 hexadecimal characters. The github scheme and a full URL need no pattern.

The link kind says how the doc relates to the target. implemented-by names the code that builds this doc. implements, refines, references and supersedes also take an external target.

Section titled “Add the link”

  1. Add the link to the links: list in the frontmatter of the spec doc:

    type: sdd
    title: Refunds
    links:
      - kind: implemented-by
        target: github:acme/payments#internal/pay
      - kind: references
        target: jira:PAY-412
      - kind: references
        target: https://company.atlassian.net/wiki/spaces/ENG/pages/4210

  2. For a short key, such as jira:PAY-412, add a pattern for the scheme to .speccy.yaml at the root of the folder. {key} stands for the part after the colon:

    link_patterns:
      jira: https://company.atlassian.net/browse/{key}

    A pattern is an http or https URL that holds {key}. It cannot replace the github scheme.

  3. Save the doc. Lint runs on the new version. A target that does not parse fails links.external-target, a MUST check. The finding says what to write instead.

  4. Choose More → Traceability. The External links table lists each link with its state, its kind and the reason for the state.

Speccy reads link_patterns from the .speccy.yaml of the folder it serves. A server in hosted mode serves no folder, so there you write the full URL.

Read the state

Section titled “Read the state”

Each row of External links has one of four states.

State What it means What you do
Aligned Speccy read the target, and it agrees with the doc. Nothing.
Drifted The code at the target changed after this version of the doc. Read the commit. Verify the build at it, then change the doc, or waive the drift with a reason.
Conflicting The issue or the page states something that the doc contradicts. Decide which of the two is right, and change that one.
Unchecked No credential and no MCP connection reads the target. Add a connection for the host, or leave it. An unchecked link fails no check.

Speccy reads the targets in two ways.

Code. Speccy reads an implemented-by link with a github: target. It asks GitHub for the newest commit that touched the path. Local mode uses your gh login, or the token in Admin, under GitHub. Hosted mode uses the token of the source. A repo that the credential cannot read stays unchecked. A target that names one commit never moves, so it reads aligned.

An issue or a page. Speccy reads any other target through an MCP connection whose hosts include the host of the URL. A full review reads it, and the model compares it with the doc. A github: link of another kind stays unchecked.

Drift and conflict are SHOULD checks: links.code-drift and coherence.external. Neither one blocks Build Ready. Speccy checks drift on every save, because drift needs no model. It checks a conflict only in a full review.

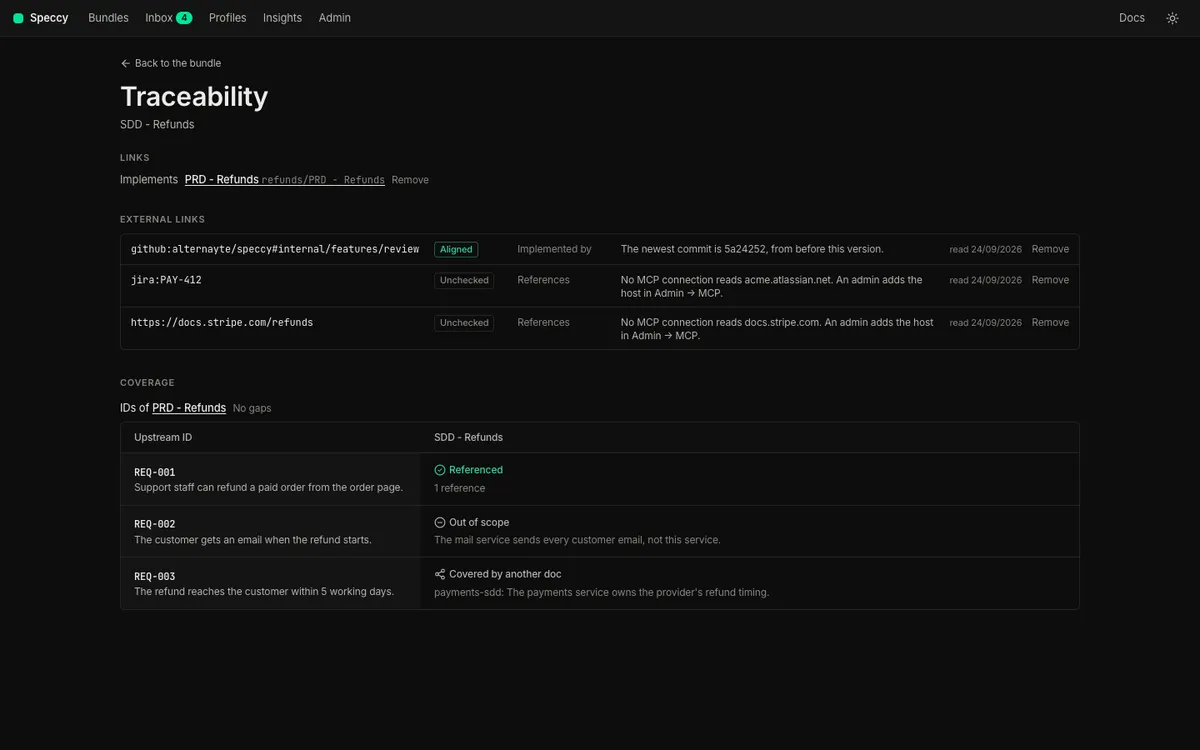

The External links table on the Traceability page, with one row in each state

Clear a drift

Section titled “Clear a drift”

  1. Open the links.code-drift finding in the findings rail. It names the newest commit and its date.

  2. Click Verify at and the short commit. The Verification panel on the History tab opens with that commit. Verify a build goes on from there.

  3. Change the doc where the code shows it is wrong, and save. Drift compares the code with the date of the doc version, so a new version clears the drift. To keep the doc as it is, ask for a waiver of the finding with a reason.

A new review run on the same version does not clear a drift. A version is the record of a person who read the doc.

Connect another host through MCP

Section titled “Connect another host through MCP”

Speccy stores no tracker password, and it calls no tracker API of its own. It reads an issue or a page through an MCP connection that an admin adds.

  1. Open Admin. Under MCP connections, click Add connection.

  2. Enter a Name. Pick HTTP URL and enter the URL, or pick Local command (stdio) and enter the command, one argument per line. Enter a Secret (optional) when the server needs one. Click Add.

  3. On the new row, click Tools (0 allowed). Speccy connects to the server and lists its tools.

  4. Tick the read-only tools that the review may use. Speccy refuses a tool that the server marks as one that changes data.

  5. Mark one allowed tool reads a page.

  6. In the hosts field, enter the hosts that this connection reads, separated by commas, such as company.atlassian.net, linear.app.

  7. Click Save tools.

Speccy picks the connection by the host of the URL, and it calls the tool marked reads a page. No model picks the connection or the tool, so a doc cannot steer Speccy into another system. The next full review reads the link. An unchanged issue costs no model call on the next run, because Speccy keeps the result for the same content.

Section titled “Remove a link”

Speccy v0.18.0 and later remove a link from the Traceability page.

  1. Choose More → Traceability.

  2. Find the link under Links or External links, and click Remove.

  3. Read what Speccy does, and click Remove the link.

What Speccy does depends on where the link lives:

  • A frontmatter link of a doc that Speccy writes, in a folder it serves or in its own store. Speccy takes the link out of the frontmatter, as a new version.
  • An adopted link. Speccy forgets the link. The repo takes no commit.
  • A link in the frontmatter of a repo doc. The row reads “(in the repo)”, and it has no Remove. Change the frontmatter in the repo.
  • A link that a link rule makes. The row reads “(link rule)”. Change the rule in .speccy.yaml.

An adopted link always names another bundle, so only the Links list shows one.

What happens in the build packet

Section titled “What happens in the build packet”

The build packet lists each external link with its kind and its URL. For a code target, it also gives the commit that the last run read. The re-entry prompt, HANDOFF.md, carries the same lines, so a coding agent knows which path to change and which issue to read. Speccy fetches no issue or page content into the packet.
